PIGSTICK

Wireless Pig Tracking in Minutes

Dual Detection

Detects 22Hz ELF transmitters, MFL inspection tools, or both simultaneously. Choose your trigger mode and threshold to match your work.

Unmanned Operation

Stay wiith it or leave PigStick on-site and walk away. The device continuously monitors all three sensor channels and automatically records 20 seconds of data before and after each trigger event.

Geophone Audio

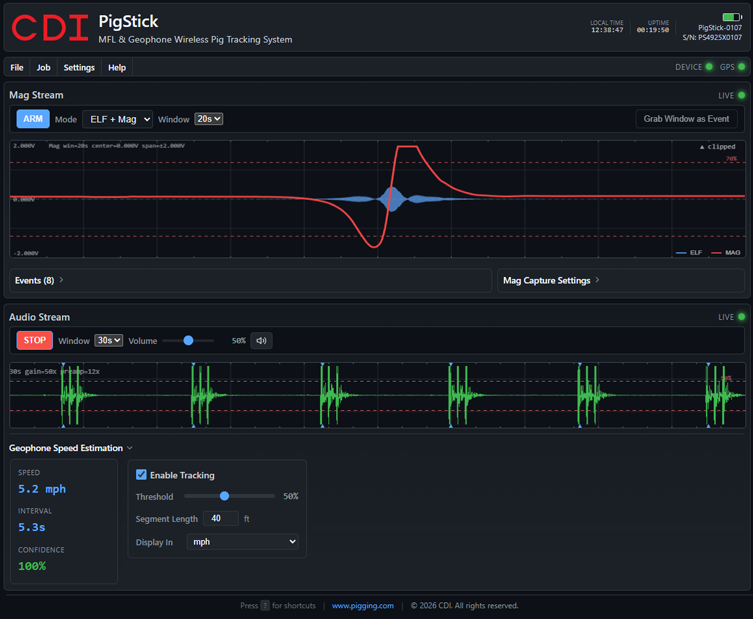

Listen to pig passages in real-time through your device speakers or headphones. See the audio waveform on screen while PigStick automatically estimates pig speed from weld strikes.

One-Tap Reports

Download complete job data with a single tap. Reports include a PDF summary with passage images, WAV audio files, and a CSV spreadsheet with all waveform data, GPS coordinates, and timestamps.

Take advantage of
introductory pricing and
pre-order your PigSticks now!
Features
  • Works on any device: iPhone, Android, Windows, Mac, Linux
  • Three capture modes: Zero Crossing, Threshold, or both simultaneously
  • GPS timestamped events with Google Maps integration
  • One-tap export to CSV, PDF, or PNG
  • Over-the-air firmware updates forever. No wires, no tech time, no charge.
  • Supports 2 simultaneous client connections
  • Operates from -40°F to +185°F
  • USB-C rechargeable, week-long battery life

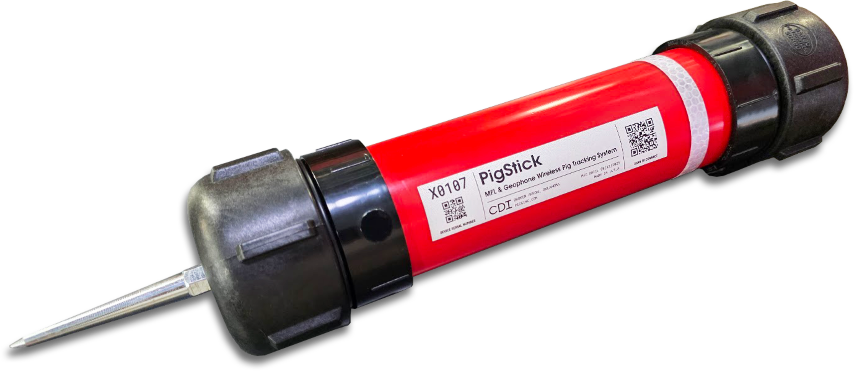

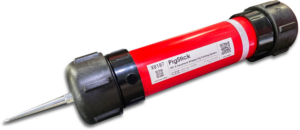

PigStick: Wireless Pig Tracking for Any Device
PigStick detects MFL tools, 22 Hz ELF transmitters, and acoustics with its built-in geophone. Its browser-based interface turns any phone, tablet, or laptop into your tracking display – no apps to install, no IT tickets, no Bluetooth pairing failures. Connect to PigStick’s WiFi, open your browser, and start tracking. No internet required.

Stay Online While You Track
Your laptop has one WiFi radio – connect to PigStick and you normally lose internet. The included USB WiFi dongle fixes that by adding a second radio, so you can monitor the pig while staying online for email, cloud tools, or reporting. Magnetic-base antenna mounts on your vehicle roof for reliable connectivity at maximum range.

Automatic Event Capture
Arm the system and walk away. PigStick captures passages automatically with waveform data, GPS coordinates, and UTC timestamps. Events are stored indefinitely – come back days or weeks later to review and export. One tap generates CSV, PDF, or PNG reports.

Live Geophone Audio
Stream real-time geophone audio to your speakers or headphones while watching the waveform on screen. Enable acoustic speed detection to calculate pig velocity from weld-strike intervals.

Multi-Client Streaming
Two simultaneous users can connect to the same PigStick, viewing waveforms and listening to audio from separate devices. Coordinate with your team without sharing a screen.

OTA Updates
Give PigStick your WiFi credentials and it connects to the internet to check for firmware updates automatically. No cables, no returns to CDI, no charge. Your device stays current with the latest features and improvements.

Built for the Field
Rechargeable battery with week-long field life. USB-C charging. Operates from -40°F to +185°F – from North Dakota winters to Texas summers.
